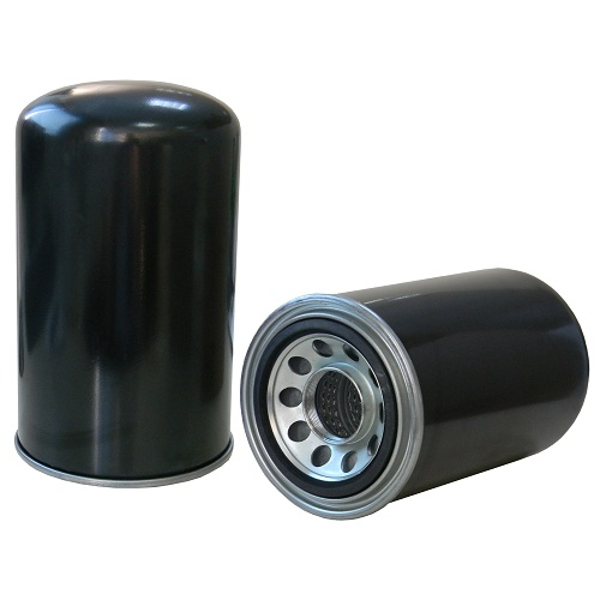

HYDRAULIC FILTER SPIN ON
SP1689HT
HYDRAULIC FILTER SPIN ON
SP1689HT
£95.23 exc VAT
In stock
In stock
Order By 2pm for UK Free Next Day Delivery
Orders under £250 Standard Delivery £25 +VAT
Orders over £250 Free Delivery
| Product Specification | |
| Thread Size | 1 3/4 x 16 UN |
| Outer Diameter | 140 mm (5.51 inch) |
| Gasket OD | 111 mm (4.37 inch) |
| Gasket ID | 100 mm (3.94 inch) |
| Length | 175 mm (6.89 inch) |
| Overall Length | 175 mm (6.89 inch) |
| Efficiency 99.9% Beta 1000 | 45 micron |
| Efficiency Test Standard | ISO IATF 16949 |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 0.8 bar 12 psi |
| Bypass Valve Setting HR | 2.5 bar 36 psi |
| Type | OEM Quality Hydraulic Filter |
| Style | Hydraulic Spin On |
| Media Type | Synthetic Pleated |
| Notes | Bottom End Closed |
| Notes | Gasket Seal Included |
| Notes | Square Seal is Attached |
| Notes | Use SP863 For Standard Version |
| Notes | |
| Primary Application | NEW HOLLAND 84123428 |
OEM Cross Reference
| Manufacturer Name | Manufacturer Part No |
| ASAS | SP1689HT |
| ASAS FILTER | SP1689HT |
| BALDWIN | BT8899 |
| CASE IH | 47131195 |
| CASE IH | 84168722 |
| CASE IH | 84257511 |
| CASE IH | CIH84123428 |
| CASE IH | 84123428H |
| CNH | 84123428 |
| CNH | 84257511 |
| DONALDSON | P765662 |
| FIL FILTER | ZP3231MG |
| FORDSON FORD SCHLEPPER | 5174044 |
| FOTON | P5S58101101 |
| HENGST | HY490W |
| HIFI | SH63736CC |
| MANN HUMMEL | W14005 |
| NEW HOLLAND | 47131194 |
| NEW HOLLAND | 5174044 |
| NEW HOLLAND | 47131195 |
| NEW HOLLAND | 82824886 |
| NEW HOLLAND | 84123428 |
| NEW HOLLAND | 841234280 |
| NEW HOLLAND | 84123428H |
| NEW HOLLAND | 84168726 |
| NEW HOLLAND | 84257511 |
| PALLMAN | PFH76566 |
| PALLMAN FILTER | PFH76566 |
| PARKER HANNIFIN | BT8899 |
| SAKURA | HC45070 |
| SF FILTER | SPH9914 |
| STEYR DAIMLER PUCH | 84168736 |
| SURE FILTER | SFH4044 |
| TURK TRAKTOR | YP84257511 |
| TURK TRAKTOR | 48188218 |
| TURK TRAKTOR | YP84123428 |
| TURK TRAKTOR | YPCIH84123428 |
| UFI | 8012300 |
| WIX | 57794 |
Machinery & Equipment
| Equipment | Year | Equipment Type | Equipment Options | Engine |
| CASE IH 65C | TRACTOR | QUANTUM SERIES | CASE IH 8035.25C.939 | |
| CASE IH 75V | TRACTOR | QUANTUM SERIES | CASE IH 8035.25C.939 | |
| CASE IH 85V | TRACTOR | QUANTUM SERIES | CASE IH 8035.25C.939 | |
| CASE IH 95V | TRACTOR | QUANTUM SERIES | CASE IH 8035.25C.939 | |
| CASE IH JX1060C | TRACTOR | JX SERIES | CASE IH 8035.25C.939 | |
| CASE IH JX1075C | TRACTOR | JX SERIES | CASE IH 8035.25C.939 | |
| CASE IH JX1080U | TRACTOR | JX SERIES | CASE IH 8035.25C.939 | |
| CASE IH JX1090U | TRACTOR | JX SERIES | CASE IH 8035.25C.939 | |
| CASE IH JX1095C | TRACTOR | JX SERIES | CASE IH 8035.25C.939 | |
| CASE IH JX70 | TRACTOR | CASE IH 8035.25C.939 | ||
| CASE IH JX95 | TRACTOR | JX SERIES | CASE IH 8035.25C.939 | |
| CASE IH JXU105 | TRACTOR | JXU SERIES | CASE IH 8035.25C.939 | |
| CASE IH JXU85 | TRACTOR | JXU SERIES | CASE IH 8035.25C.939 | |
| NEW HOLLAND T4.105 | TRACTOR | T4 SERIES | FPT INDUSTRIAL F5C | |
| NEW HOLLAND T4.105F | TRACTOR | T4 SERIES | FPT INDUSTRIAL NEF | |
| NEW HOLLAND T4.65 | TRACTOR | T4 POWERSTAR SERIES | FPT INDUSTRIAL F5C | |
| NEW HOLLAND T4.65V | TRACTOR | T4 SERIES | FPT INDUSTRIAL F5C | |
| NEW HOLLAND T4.75 | TRACTOR | T4 POWERSTAR SERIES | FPT INDUSTRIAL F5C | |
| NEW HOLLAND T4.75F | TRACTOR | T4 SERIES | FPT INDUSTRIAL F5C | |
| NEW HOLLAND T4.75V | TRACTOR | T4 SERIES | FPT INDUSTRIAL F5C | |
| NEW HOLLAND T4.85 | TRACTOR | T4 SERIES | FPT INDUSTRIAL F5C | |
| NEW HOLLAND T4.85F | TRACTOR | T4 SERIES | FPT INDUSTRIAL F5C | |
| NEW HOLLAND T4.85V | TRACTOR | T4 SERIES | FPT INDUSTRIAL F5C | |
| NEW HOLLAND T4.95 | TRACTOR | T4 SERIES | FPT INDUSTRIAL F5C | |
| NEW HOLLAND T4.95F | TRACTOR | T4 SERIES | FPT INDUSTRIAL NEF | |
| NEW HOLLAND T4.95V | TRACTOR | T4 SERIES | FPT INDUSTRIAL NEF | |
| NEW HOLLAND T4020 | TRACTOR | T4000 SERIES | IVECO F5C | |
| NEW HOLLAND T4020V | TRACTOR | T4000 SERIES | IVECO F5C | |
| NEW HOLLAND T4030 | TRACTOR | T4000 SERIES | IVECO F5C | |
| NEW HOLLAND T4030F | TRACTOR | T4000 SERIES | IVECO F5C | |
| NEW HOLLAND T4030N | TRACTOR | T4000 SERIES | IVECO F5C | |
| NEW HOLLAND T4030V | TRACTOR | T4000 SERIES | IVECO F5C | |
| NEW HOLLAND T4040 | TRACTOR | T4000 SERIES DELUXE | NEW HOLLAND NEF | |
| NEW HOLLAND T4040F | TRACTOR | T4000 SERIES | NEW HOLLAND NEF445TAM3 | |
| NEW HOLLAND T4040N | TRACTOR | T4000 SERIES | NEW HOLLAND NEF445TAM3 | |
| NEW HOLLAND T4040V | TRACTOR | T4000 SERIES | NEW HOLLAND NEF445TAM3 | |
| NEW HOLLAND T4050 | TRACTOR | T4000 SERIES | NEW HOLLAND NEF445TAM3 | |
| NEW HOLLAND T4050F | TRACTOR | T4000 SERIES | NEW HOLLAND NEF445TAM3 | |
| NEW HOLLAND T4050N | TRACTOR | T4000 SERIES | NEW HOLLAND NEF445TAM3 | |
| NEW HOLLAND T4050V | TRACTOR | T4000 SERIES | NEW HOLLAND NEF445TAM3 | |
| NEW HOLLAND T5030 | TRACTOR | T5000 SERIES | NEW HOLLAND NEF445TAM3 | |
| NEW HOLLAND T5040 | TRACTOR | T5000 SERIES | NEW HOLLAND NEF445TAM3 | |
| NEW HOLLAND T5050 | TRACTOR | T5000 SERIES | NEW HOLLAND NEF445TAM3 | |
| NEW HOLLAND T5060 | TRACTOR | T5000 SERIES | NEW HOLLAND NEF445TAM3 | |
| NEW HOLLAND T5070 | TRACTOR | T5000 SERIES | NEW HOLLAND NEF445TAM3 | |
| NEW HOLLAND TD4020F | TRACTOR | TD SERIES | IVECO F5C | |
| NEW HOLLAND TD4030F | TRACTOR | TD SERIES | IVECO F5C | |
| NEW HOLLAND TD4040F | TRACTOR | TD SERIES | IVECO F5C | |
| NEW HOLLAND TD5010 | TRACTOR | TD SERIES | IVECO F5C | |
| NEW HOLLAND TD5020 | TRACTOR | TD SERIES | IVECO F5C | |
| NEW HOLLAND TD5030 | TRACTOR | TD SERIES | IVECO F5C | |
| NEW HOLLAND TD5040 | TRACTOR | TD SERIES | NEW HOLLAND NEF445TM2 | |
| NEW HOLLAND TD5050 | TRACTOR | TD SERIES | NEW HOLLAND NEF445TM2 | |
| NEW HOLLAND TD60D | TRACTOR | TD SERIES | NEW HOLLAND NEF445TM2 | |
| NEW HOLLAND TD65F | TRACTOR | TD SERIES | NEW HOLLAND NEF445TM2 | |
| NEW HOLLAND TD70D | TRACTOR | TD SERIES | NEW HOLLAND NEF445TM2 | |
| NEW HOLLAND TD75F | TRACTOR | TD SERIES | NEW HOLLAND NEF445TM2 | |
| NEW HOLLAND TD80D | TRACTOR | TD SERIES | NEW HOLLAND NEF445TM2 | |
| NEW HOLLAND TD85F | TRACTOR | TD SERIES | NEW HOLLAND NEF445TM2 | |
| NEW HOLLAND TD90D | TRACTOR | TD SERIES | NEW HOLLAND NEF445TM2 | |
| NEW HOLLAND TD95D | TRACTOR | TD SERIES | IVECO 8045T | |
| NEW HOLLAND TL70A | TRACTOR | IVECO 8045T |
