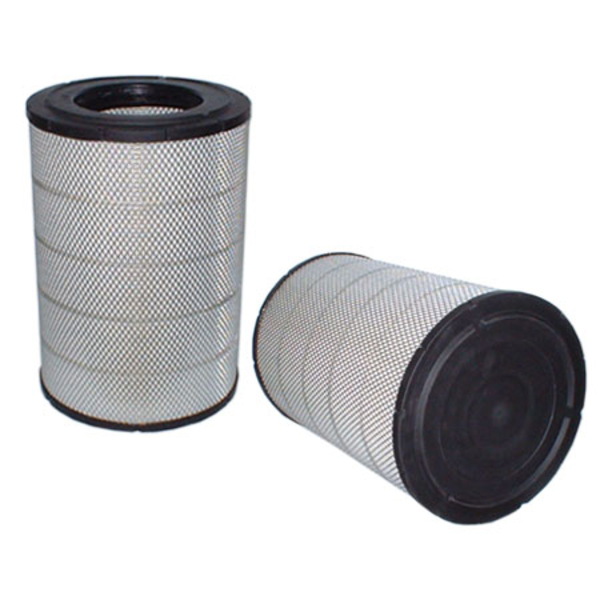

AIR FILTER PRIMARY RADIALSEAL
HF5004
AIR FILTER PRIMARY RADIALSEAL
HF5004
£81.18 exc VAT
In stock
In stock
Order By 2pm for UK Free Next Day Delivery
Orders under £250 Standard Delivery £25 +VAT
Orders over £250 Free Delivery
| Product Specification | |
| Outer Diameter | 281 mm (11.06 inch) |
| Inner Diameter | 150 mm (5.91 inch) |
| Inner Diameter Bottom End | 150 mm (5.91 inch) |
| Length | 327.5 mm (12.89 inch) |
| Overall Length | 340.5 mm (13.41 inch) |
| Efficiency Beta 1000 | 99.9% |
| Efficiency Test Standard | ISO IATF 16949 |
| Family | Extreme Protection |
| Type | OEM Quality Air Filter |
| Style | Primary Radial Seal Round |
| Media Type | Cellulose Pleated |
| Notes | Bottom End Closed |
| Notes | Metal Mesh Protection |
| Notes | Safety HF5005 |
| Primary Application | CATERPILLAR 612501 |
OEM Cross Reference
| Manufacturer Name | Manufacturer Part No |
| AC DELCO | A1593C |
| AGCO | 3782386M1 |
| AIR REFINER | ARM2512 |
| ALCO | MD7502 |
| AMERICAN MOTORS CORP | AE27150 |
| AMERICAN MOTORS CORP | SFA2501P |
| AMERICAN PARTS | 94479 |
| ASAS | HF5004 |
| ASAS FILTER | HF5004 |
| ATLAS COPCO | 9772040085 |
| BALDWIN | RS3504 |
| BALDWIN | RS3504XP |
| BERGERAT MONNOYEUR | E3542 |
| BIG A | 94479 |
| CARQUEST | 88479 |
| CATERPILLAR | 1282686 |
| CATERPILLAR | 612501 |
| CATERPILLAR | 6I2501 |
| CATERPILLAR | 6I2501C |
| CLAAS | 3600320 |
| COOPERS | AEM2684 |
| DONALDSON | P532501 |
| DONSSON | DA2598 |
| ECOLOG | 7012073 |
| EXMAN | AE27150 |
| EXMAN | SFA2501P |
| FLEETGUARD | AF27916 |
| FLEETGUARD | AF25025M |
| FLEETGUARD | AF25125M |
| FORD | 9576P532501 |
| GPC | FC883 |
| GREYFRIARS | 1613A |
| GT PIECES ET SERVICES | 2242295 |
| HASTINGS | AF2200 |
| HENGST | E591L |
| HIFI | SA16980 |
| HIFI | SA16004 |
| KNECHT | LX1774 |
| KRALINATOR | LA1515 |
| LIUGONG | A5549 |
| LOESING | 20241 |
| LUBER FINER | LAF4501 |
| LUBER FINER | LAF4501MXM |
| MAHLE | LX1774 |
| MANN HUMMEL | C298402 |
| MANN HUMMEL | C28781 |
| MANN HUMMEL | C29840 |
| MISFAT | RM808 |
| NAPA | 6479 |
| PALLMAN | PFA53250 |
| PALLMAN FILTER | PFA53250 |
| PARKER HANNIFIN | RS3504 |
| PARKER HANNIFIN | RS3504XP |
| PUROLATOR | A55001 |
| REYTOR | IT2075 |
| SF FILTER | SL8993 |
| SHANGHAI DIESEL | A5549 |
| SPAREX | S108755 |
| SPAREX | S73081 |
| TRP | 1534545 |
| UNITED CENTRAL INDUSTRIAL | 688112 |
| VAPORMATIC | CPD7325 |
| VMC | AF532501 |
| WALGAHN MOTORENTECHN | 811890 |
| WIRTGEN | 97824 |
| WIX | 46479 |
| WIX | 46479NP |
| WOODGATE | WGA1099 |
| XGMA | 28331 |
| XGMA | A5549 |
| XGMA | A554955501 |
| XGMA | G128 |
Machinery & Equipment
| Equipment | Year | Equipment Type | Equipment Options | Engine |
| CATERPILLAR 140G | GRADER | 140 SERIES | CATERPILLAR 3306T | |
| CATERPILLAR 14G | GRADER | 14 SERIES | CATERPILLAR 3306 | |
| CATERPILLAR 160G | GRADER | 160 SERIES | CATERPILLAR 3306 | |
| CATERPILLAR 225 | EXCAVATOR TRACKED | 200 SERIES | CATERPILLAR 3304 | |
| CATERPILLAR 235 | EXCAVATOR TRACKED | 200 SERIES | CATERPILLAR 3306 | |
| CATERPILLAR 3126B | ENGINE | CATERPILLAR 3116T | ||
| CATERPILLAR 320B | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3116T | |
| CATERPILLAR 320BL | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3066T | |
| CATERPILLAR 320BLN | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3116T | |
| CATERPILLAR 320BN | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3066T | |
| CATERPILLAR 320BS | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3116T | |
| CATERPILLAR 320C | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3066T | |
| CATERPILLAR 320CL | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3066ATAAC | |
| CATERPILLAR 320D | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C64ACERT | |
| CATERPILLAR 320D2 | EXCAVATOR | CATERPILLAR C71 | ||
| CATERPILLAR 322B | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3116TA | |
| CATERPILLAR 322BL | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3116TA | |
| CATERPILLAR 322BLN | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3116TA | |
| CATERPILLAR 322C | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3126B | |
| CATERPILLAR 322CL | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3126BATAAC | |
| CATERPILLAR 322CLN | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3126BATAAC | |
| CATERPILLAR 323DL | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C64ACERT | |
| CATERPILLAR 323DLN | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C64ACERT | |
| CATERPILLAR 325B | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3116TA | |
| CATERPILLAR 325BL | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3116TA | |
| CATERPILLAR 325BLN | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3116TA | |
| CATERPILLAR 330C | EXCAVATOR TRACKED | CATERPILLAR 3116TA | ||
| CATERPILLAR 527 | SKIDDER | CATERPILLAR 3304 | ||
| CATERPILLAR 530B | FORESTRY EQUIPMENT | CATERPILLAR 3306T | ||
| CATERPILLAR 550 | FORESTRY EQUIPMENT | CATERPILLAR 3126 | ||
| CATERPILLAR 550 | FORESTRY EQUIPMENT | CATERPILLAR C7TAACERT | ||
| CATERPILLAR 550B | FORESTRY EQUIPMENT | CATERPILLAR 3056E | ||
| CATERPILLAR 560B | FORESTRY EQUIPMENT | CATERPILLAR 3056E | ||
| CATERPILLAR 561N | PIPE LAYER | 500 SERIES | CATERPILLAR 3126B | |
| CATERPILLAR 570 | FORESTRY EQUIPMENT | CATERPILLAR 3126 | ||
| CATERPILLAR 570B | FORESTRY EQUIPMENT | CATERPILLAR 3126B | ||
| CATERPILLAR 580 | FORESTRY EQUIPMENT | CATERPILLAR 3126 | ||
| CATERPILLAR 580B | FORESTRY EQUIPMENT | CATERPILLAR 3126B | ||
| CATERPILLAR 589 | PIPE LAYER | 500 SERIES | CATERPILLAR 3408 | |
| CATERPILLAR 611 | SCRAPER | CATERPILLAR 3306 | ||
| CATERPILLAR 615C II | SCRAPER | CATERPILLAR 3306 | ||
| CATERPILLAR 65B | TRACTOR | CATERPILLAR 3306 | ||
| CATERPILLAR 815B | COMPACTOR | 800 SERIES | CATERPILLAR 3306 | |
| CATERPILLAR 816B | COMPACTOR | 800 SERIES | CATERPILLAR 3306 | |
| CATERPILLAR 938F | LOADER WHEELED | 900 SERIES | CATERPILLAR 3116TA | |
| CATERPILLAR 938G | LOADER WHEELED | 900 SERIES | CATERPILLAR 3126TA | |
| CATERPILLAR 950F II | LOADER WHEELED | 900 SERIES | CATERPILLAR 3116TA | |
| CATERPILLAR 950G | LOADER WHEELED | 900 SERIES | CATERPILLAR 3126TA | |
| CATERPILLAR 960F | LOADER WHEELED | 900 SERIES | CATERPILLAR 3116TA | |
| CATERPILLAR 962G | LOADER WHEELED | 900 SERIES | CATERPILLAR 3126TA | |
| CATERPILLAR 966D | LOADER WHEELED | 900 SERIES | CATERPILLAR 3306 | |
| CATERPILLAR 966E | LOADER WHEELED | 900 SERIES | CATERPILLAR 3306 | |
| CATERPILLAR 966F | LOADER WHEELED | 900 SERIES | CATERPILLAR 3306 | |
| CATERPILLAR 966F II | LOADER WHEELED | 900 SERIES | CATERPILLAR 3306 | |
| CATERPILLAR AP1050 | PAVER | AP SERIES | CATERPILLAR 3116T | |
| CATERPILLAR | TRACTOR | CHALLENGER 35 | CATERPILLAR 3116 | |
| CATERPILLAR | TRACTOR | CHALLENGER 36 | CATERPILLAR 3116 | |
| CATERPILLAR | TRACTOR | CHALLENGER 45 | CATERPILLAR 3116 | |
| CATERPILLAR CP563 | COMPACTOR | CP SERIES | CATERPILLAR 3116 | |
| CATERPILLAR CP643 | COMPACTOR | CP SERIES | CATERPILLAR 3304 | |
| CATERPILLAR CP653 | COMPACTOR | CP SERIES | CATERPILLAR 3304 | |
| CATERPILLAR CS563 | COMPACTOR | CS SERIES | CATERPILLAR 3116T | |
| CATERPILLAR D5E | TRACTOR TRACKED | D SERIES | CATERPILLAR 3306 | |
| CATERPILLAR D5H | TRACTOR TRACKED | D SERIES | CATERPILLAR 3304 | |
| CATERPILLAR D5H II | TRACTOR TRACKED | D SERIES | CATERPILLAR 3304 | |
| CATERPILLAR D5H LGP | TRACTOR TRACKED | D SERIES | CATERPILLAR 3304 | |
| CATERPILLAR D5H XL | TRACTOR TRACKED | D SERIES | CATERPILLAR 3304 | |
| CATERPILLAR D5N LGP | TRACTOR TRACKED | D SERIES | CATERPILLAR 3126B | |
| CATERPILLAR D5N XL | TRACTOR TRACKED | D SERIES | CATERPILLAR 3126B | |
| CATERPILLAR D6H | TRACTOR TRACKED | D SERIES | CATERPILLAR 3306 | |
| CATERPILLAR D6H II | TRACTOR TRACKED | D SERIES | CATERPILLAR 3306 | |
| CATERPILLAR D6H II LGP | TRACTOR TRACKED | D SERIES | CATERPILLAR 3306 | |
| CATERPILLAR D6H II XL | TRACTOR TRACKED | D SERIES | CATERPILLAR 3306 | |
| CATERPILLAR D6H II XR | TRACTOR TRACKED | D SERIES | CATERPILLAR 3306 | |
| CATERPILLAR D6H LGP | TRACTOR TRACKED | D SERIES | CATERPILLAR 3306 | |
| CATERPILLAR D6M LGP | TRACTOR TRACKED | D SERIES | CATERPILLAR 3116 | |
| CATERPILLAR D6M XL | TRACTOR TRACKED | D SERIES | CATERPILLAR 3116 | |
| CATERPILLAR D6N LGP | TRACTOR TRACKED | D SERIES | CATERPILLAR C66ACERT | |
| CATERPILLAR D6N XL | TRACTOR TRACKED | D SERIES | CATERPILLAR C66ACERT | |
| CATERPILLAR D6R | TRACTOR TRACKED | D SERIES | CATERPILLAR 3306 | |
| CATERPILLAR D6R II | TRACTOR TRACKED | D SERIES | CATERPILLAR C9 | |
| CATERPILLAR D6R II LGP | TRACTOR TRACKED | D SERIES | CATERPILLAR C9 | |
| CATERPILLAR D6R II XL | TRACTOR TRACKED | D SERIES | CATERPILLAR C9 | |
| CATERPILLAR D6R II XW | TRACTOR TRACKED | D SERIES | CATERPILLAR C9 | |
| CATERPILLAR D6R III | TRACTOR TRACKED | D SERIES | CATERPILLAR C9ACERT | |
| CATERPILLAR D6R III LGP | TRACTOR TRACKED | D SERIES | CATERPILLAR C9ACERT | |
| CATERPILLAR D6R III XL | TRACTOR TRACKED | D SERIES | CATERPILLAR C9ACERT | |
| CATERPILLAR D6R III XW | TRACTOR TRACKED | D SERIES | CATERPILLAR C9ACERT | |
| CATERPILLAR D6R LGP | TRACTOR TRACKED | D SERIES | CATERPILLAR 3306 | |
| CATERPILLAR D6R XL | TRACTOR TRACKED | D SERIES | CATERPILLAR 3306 | |
| CATERPILLAR D6R XR | TRACTOR TRACKED | D SERIES | CATERPILLAR 3306 | |
| CATERPILLAR D6T | TRACTOR TRACKED | D SERIES | CATERPILLAR C9ACERT | |
| CATERPILLAR D6T LGP | TRACTOR TRACKED | D SERIES | CATERPILLAR C93ACERT | |
| CATERPILLAR D6T XL | TRACTOR TRACKED | D SERIES | CATERPILLAR C93ACERT | |
| CATERPILLAR D6T XW | TRACTOR TRACKED | D SERIES | CATERPILLAR C93ACERT | |
| CATERPILLAR D7H II LGP | DOZER TRACKED | D SERIES | CATERPILLAR 3306 | |
| CATERPILLAR D7H II XR | DOZER TRACKED | D SERIES | CATERPILLAR 3306 | |
| CATERPILLAR D7H LGP | DOZER TRACKED | D SERIES | CATERPILLAR 3306 | |
| CATERPILLAR D7H XR | DOZER TRACKED | D SERIES | CATERPILLAR 3306 | |
| CATERPILLAR IT38F | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 3116 | |
| CATERPILLAR IT38G | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 3126DITA | |
| CATERPILLAR IT62G | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 3126DITA | |
| CATERPILLAR PS500 | COMPACTOR | PS SERIES | CATERPILLAR 3208 | |
| LIUGONG ZL40B | LOADER WHEELED | YUCHAI YC6108G | ||
| MASSEY FERGUSON MF6485 | TRACTOR | MF 6400 SERIES | SISU 66ETA | |
| MASSEY FERGUSON MF6490 | TRACTOR | MF 6400 SERIES | SISU 66ETA | |
| MASSEY FERGUSON MF6495 | TRACTOR | MF 6400 SERIES | SISU 66ETA | |
| MASSEY FERGUSON MF7485 | TRACTOR | MF 7400 SERIES | SISU 66ETA | |
| MASSEY FERGUSON MF7490 | TRACTOR | MF 7400 SERIES | SISU 66ETA | |
| MASSEY FERGUSON MF7495 | TRACTOR | MF 7400 SERIES | SISU 66ETA | |
| MASSEY FERGUSON MF8240 | TRACTOR | MF 8200 SERIES | VALMET 620 DS | |
| MASSEY FERGUSON MF8260 | TRACTOR | MF 8200 SERIES | VALMET 634 DSBAE | |
| XGMA XG951 | LOADER WHEELED | SHANGHAI DIESEL D6114 | ||
| XGMA XG951 | LOADER | SHANGHAI DIESEL D6114 | ||
| XGMA XG953 | LOADER WHEELED | WEICHAI WD61561AG26 | ||
| XGMA XG953 | LOADER | SHANGHAI DIESEL G128G1C |
