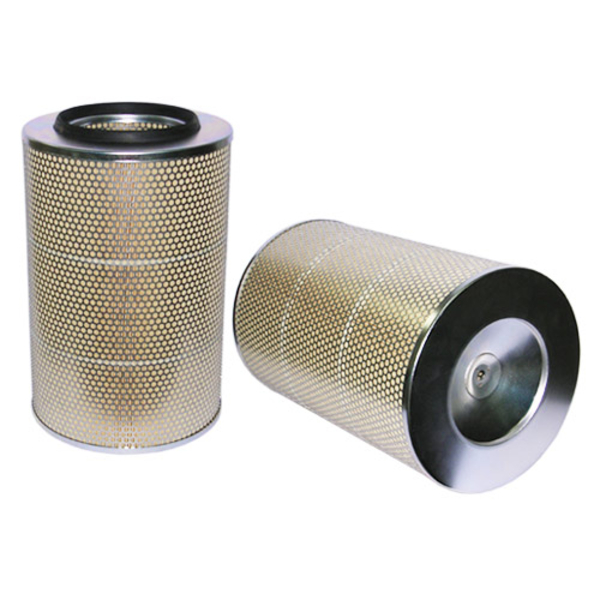

AIR FILTER PRIMARY ROUND
HF315
AIR FILTER PRIMARY ROUND
HF315
£66.05 exc VAT
In stock
In stock
Order By 2pm for UK Free Next Day Delivery
Orders under £250 Standard Delivery £25 +VAT
Orders over £250 Free Delivery
| Product Specification | |
| Outer Diameter | 232 mm (9.13 inch) |
| Inner Diameter | 148 mm (5.83 inch) |
| Inner Diameter Bolt Hole | 23 mm (0.91 inch) |
| Length | 330 mm (12.99 inch) |
| Overall Length | 342 mm (13.47 inch) |
| Efficiency Beta 1000 | 99.9% |
| Efficiency Test Standard | ISO IATF 16949 |
| Family | Extreme Protection |
| Type | OEM Quality Air Filter |
| Style | Primary Round |
| Media Type | Cellulose Pleated |
| Notes | Bottom End Closed |
| Notes | Metal Mesh Protection |
| Notes | Safety HF366 |
| Primary Application | ISUZU 1142151710 |
OEM Cross Reference
| Manufacturer Name | Manufacturer Part No |
| AC DELCO | A969C |
| AIR REFINER | ARM127314 |
| ALCO | MD9948 |
| ALCOA MARINE | IA366 |
| ALCOA MARINE | NA2289 |
| AMERICAN MOTORS CORP | IA366 |
| AMERICAN MOTORS CORP | NA2289 |
| AMERICAN PARTS | 1187 |
| AMERICAN PARTS | 93520 |
| ASAHI | A2289V |
| ASAHI | IA366 |
| ASAS | HF315 |
| ASAS FILTER | HF315 |
| BALDWIN | PA2504 |
| BALDWIN | PA2779 |
| BIG A | 1187 |
| BIG A | 93520 |
| BLOUNT | 840848000 |
| CANADIAN FILTER | CFM869 |
| CARBOCOL | AF1768M |
| CARQUEST | 87520 |
| CASE IH | 3251666R1 |
| CASE IH | 3251666RL |
| CATERPILLAR | 7Y0404 |
| CATERPILLAR | 3I0831 |
| CATERPILLAR | 3I1073 |
| CATERPILLAR | 840848000 |
| CATERPILLAR | 92E6102311 |
| CATERPILLAR | 9Y6849 |
| CHEVROLET | 94058234 |
| CLARK | 2521682 |
| CLARK JL | 2521682 |
| COOPERS | AEM2032 |
| CROSLAND | 9692 |
| DONALDSON | P181080 |
| DONALDSON | P127314 |
| DONALDSON | P145896 |
| DONALDSON | P182080 |
| DONALDSON | P182175 |
| DONALDSON | P812015 |
| DONALDSON | P812016 |
| DONALDSON | P812109 |
| DONALDSON | P812110 |
| DONALDSON | P812505 |
| DONALDSON | R802106 |
| DONALDSON | R802778 |
| DONALDSON | R802788 |
| DONSSON | DA2264 |
| DRESSER | 3251666R1 |
| EATON | 408480 |
| EATON | 8408480 |
| EATON | 840848000 |
| EATON YALE | 408480 |
| EATON YALE | 8408480 |
| ELGIN | 7174375 |
| EXXEL PTY LTD | 14440012 |
| EXXEL PTY LTD | 14440017 |
| EXXEL PTY LTD | 14440024 |
| FIAT | 76502135 |
| FIL | HP421 |
| FLEETGUARD | AF1768M |
| FLEETGUARD | AF4708 |
| FLEETGUARD | AF4865M |
| FMC | 3H1758 |
| FMC | BRP0069 |
| FRAM | CA4343 |
| FREIGHTLINER | DNP181080 |
| FURUKAWA | 3251666R1 |
| GENERAL MOTORS | 15511629 |
| GENERAL MOTORS | 15583323 |
| GENERAL MOTORS | 94037810 |
| GENERAL MOTORS | 94050745 |
| GENERAL MOTORS | 94058234 |
| GREYFRIARS | 1384A |
| GUARDIAN | G127314 |
| GUD | ADG721 |
| HAWKER SIDDELEY | 31882 |
| HEAVY DUTY AIR | HDA7314 |
| HENGST | E737L |
| HIFI | SA11718 |
| HINDLE IVER | HI4147010 |
| HINO | 1780112730 |
| HINO | 178012070 |
| HINO | 178012280 |
| HINO | 178012280M |
| HINO | 178012360 |
| HINO | 178012560 |
| HINO | 178012600 |
| HINO | 178012730 |
| HINO | 178012820 |
| HITACHI | 4206976 |
| HITACHI | 4226539 |
| HITACHI | 4329453 |
| HITACHI | 76502135 |
| HITACHI | AT280291 |
| HITACHI | L4147010 |
| HITACHI | L4329453 |
| HITACHI | X4147010 |
| HITACHI | X4206976 |
| HITACHI | X4226539 |
| HITACHI | 4147010 |
| INTERNATIONAL | 3251666R1 |
| IRLEMP | AF3072LL |
| ISUZU | 1142151710 |
| ISUZU | 1124151530 |
| ISUZU | 11421505600 |
| ISUZU | 1142150670 |
| ISUZU | 1142151080 |
| ISUZU | 1142151081 |
| ISUZU | 1142151120 |
| ISUZU | 1142151340 |
| ISUZU | 1142151440 |
| ISUZU | 1142151531 |
| ISUZU | 1142151720 |
| ISUZU | 1142151970 |
| ISUZU | 1142151971 |
| ISUZU | 1142451580 |
| ISUZU | 14215067 |
| ISUZU | 142151720 |
| ISUZU | 1873100710 |
| ISUZU | 1899614278 |
| ISUZU | BA1195 |
| ISUZU | 1142141530 |
| ISUZU | 1142150600 |
| ISUZU | 1142150671 |
| ISUZU | 1142151580 |
| ISUZU | 2906469300 |
| JOHN DEERE | AT280291 |
| KAWASAKI | YYP127314 |
| KAWASAKI | YYP182175 |
| KRALINATOR | LA869 |
| KUBOTA | 3396011220 |
| LBX COMPANY LLC | 3H1758 |
| LINK BELT | 3H1758 |
| LINK BELT | 3I0945 |
| LOESING | 21617 |
| LUBER FINER | LAF9000 |
| MANN HUMMEL | C23674 |
| MANN HUMMEL | C24430 |
| MICRO PORE | AC6465 |
| MICRO PORE | AV5616 |
| MITSUBISHI | 2E2311 |
| MOTORCRAFT | FA899 |
| NAPA | 2520 |
| NAPA | 6645 |
| NELSON | 84852S |
| NEW HOLLAND | L4147010 |
| NISSAN UD TRUCKS | 1654629007 |
| NISSAN UD TRUCKS | 1654695015 |
| NISSAN UD TRUCKS | 1654699502 |
| NISSAN UD TRUCKS | 16546Z9005 |
| NISSAN UD TRUCKS | 16546Z9025 |
| NISSAN UD TRUCKS | 17801228 |
| NISSAN UD TRUCKS | BF546Z9007 |
| NISSAN UD TRUCKS | FL546Z9007 |
| NISSAN UD TRUCKS | L6546Z9007 |
| NISSAN UD TRUCKS | 16546Z9004 |
| NISSAN UD TRUCKS | D6546Z9007 |
| NISSAN UD TRUCKS | FL6546Z9007 |
| NUTECH | S1344 |
| PALLMAN | PFA18180 |
| PALLMAN FILTER | PFA18180 |
| PARKER HANNIFIN | PA2504 |
| PETTIBONE | TJ840848000 |
| PUROLATOR | A53072 |
| PUROLATOR | AF3072 |
| REFILCO | AF2520 |
| RYCO | HDA5486 |
| SAKURA | A6006 |
| SF FILTER | SL8959 |
| SUMITOMO | KRP1091 |
| SURE FILTER | SFA1080P |
| TAYLOR | 4044406 |
| TAYLOR | 4044408 |
| TAYLOR | 4404406 |
| TIM | 7Y0404 |
| TIMBERJACK | 408480 |
| TIMBERJACK | 8408480 |
| TIMBERJACK | 840848000 |
| TIMBERJACK | 4129280 |
| TOWNE TROJA | 408480 |
| TOWNE TROJA | 8408480 |
| UNITED CENTRAL INDUSTRIAL | 687580 |
| UNOCAL | A261V |
| UNOCAL | A736 |
| VIC | A274 |
| VIC | A274V |
| VIC | A563 |
| VMC | AF181080 |
| WESFIL | A889 |
| WIX | 42520 |
| WOODGATE | WGA760 |
| YALE | 8408480 |
| YALE | 840848000 |
Machinery & Equipment
| Equipment | Year | Equipment Type | Equipment Options | Engine |
| AG CHEM EQUIPMENT 554 | SPRAYER | ROGATOR | CUMMINS 6BT5.9 | |
| CATERPILLAR 320 | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3066T | |
| CATERPILLAR 320L | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3116T | |
| CATERPILLAR 320N | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3116T | |
| CATERPILLAR 320S | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3116T | |
| CATERPILLAR 322 | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3116TA | |
| CATERPILLAR 322L | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3116T | |
| CATERPILLAR 325 | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3116TA | |
| CATERPILLAR 325L | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3116TA | |
| CATERPILLAR 365BMH | MISC EQUIPMENT | CATERPILLAR 3116TA | ||
| CATERPILLAR 365CMH | MISC EQUIPMENT | CATERPILLAR 3116TA | ||
| CHEVROLET W5 | TRUCK | ISUZU 6BG1TC | ||
| CHEVROLET W5 | TRUCK | ISUZU 6.5L | ||
| CHEVROLET W6 | TRUCK | ISUZU 6.5L | ||
| CHEVROLET W6 | TRUCK | ISUZU 6BG1TC | ||
| CHEVROLET W6 | TRUCK | ISUZU 6.5L | ||
| CHEVROLET W6 | TRUCK | ISUZU 5.8L | ||
| CHEVROLET W6 | TRUCK | ISUZU 6BG1TC | ||
| CHEVROLET W7 | TRUCK | ISUZU 6.5L | ||
| CHEVROLET W7 | TRUCK | ISUZU 6BG1TC | ||
| CHEVROLET W7H | TRUCK | ISUZU 8.4L | ||
| CHEVROLET W7HV | TRUCK | ISUZU 6BG1TC | ||
| CHEVROLET W7HV | TRUCK | ISUZU 6.5L | ||
| CHEVROLET W7M | TRUCK | ISUZU 5.8L | ||
| CHEVROLET W7T | TRUCK | ISUZU 8.4L | ||
| CLARK 45C | LOADER WHEELED | ISUZU 6353 | ||
| ELGIN EAGLE | SWEEPER | ISUZU 6353 | ||
| GMC W5 | TRUCK | ISUZU 6BG1TC | ||
| GMC W5 SERIES | TRUCK | FORWARD | ISUZU 6BG1TC | |
| GMC W6 | TRUCK | ISUZU 6BG1TC | ||
| GMC W7 | TRUCK | ISUZU 6BG1TC | ||
| GMC W7HV | TRUCK | ISUZU 6BG1TC | ||
| HINO E5 FC7J FC1022 | 2011 | TRUCK | 500 SERIES | HINO 6.4L J07E |
| HINO E5 FD7J FD1124 | 2011 | TRUCK | 500 SERIES | HINO 6.4L J07E |
| HINO E5 FD7J FD1126 | 2011 | TRUCK | 500 SERIES | HINO 6.4L J07E |
| HINO E5 FG8J FG1628 | 2011 2017 | TRUCK | 500 SERIES | HINO 7.7L J08E |
| HINO E5 GT8J GT1322 | 2011 2017 | TRUCK | 500 SERIES | HINO 7.7L J08E |
| HINO US04 FD8J | 2008 2010 | TRUCK | 500 SERIES | HINO 7.7L J08E |
| HINO US04 FG8J | 2008 2010 | TRUCK | 500 SERIES | HINO 7.7L J08E |
| HINO US04 FT8J | 2008 2010 | TRUCK | 500 SERIES | HINO 7.7L J08E |
| HINO US04 GD8J | 2008 2010 | TRUCK | 500 SERIES | HINO 7.7L J08E |
| HINO US04 GH8J | 2008 2010 | TRUCK | 500 SERIES | HINO 7.7L J08E |
| HINO US04 GT8J | 2008 2010 | TRUCK | 500 SERIES | HINO 7.7L J08E |
| HINO FF192 | 1986 | TRUCK | HINO H06CT | |
| HINO FF192KD | 1986 | TRUCK | HINO H06CT | |
| HINO FF192LD | TRUCK | HINO H06CT | ||
| HINO FF193 | 1986 | TRUCK | HINO H06CT | |
| HINO FF193KA | 1986 | TRUCK | HINO H06CT | |
| HINO FF193LA | TRUCK | HINO H06CT | ||
| HINO FF193LD | TRUCK | HINO H06CT | ||
| HINO FF197 | 1986 | TRUCK | HINO H06CT | |
| HINO FF197KA | 1986 | TRUCK | HINO H06CT | |
| HINO FF197LA | TRUCK | HINO H06CT | ||
| HINO FG177LA | TRUCK | HINO H06CT | ||
| HINO FG192 | TRUCK | HINO H06CT | ||
| HINO FG192LD | TRUCK | HINO H06CT | ||
| HINO FG193LD | TRUCK | HINO H06CT | ||
| HINO FG195 | TRUCK | HINO H06CT | ||
| HINO FG195LA | TRUCK | HINO H06CT | ||
| HINO FG197LA | TRUCK | HINO H06CT | ||
| HINO RANGER 10 GH1J | 1996 2002 | TRUCK | HINO 7.7L J08C | |
| HINO RANGER 14 FM1J | 1996 2002 | TRUCK | HINO 7.96L J08C | |
| HINO RANGER 5Z FT1J | 1996 2002 | TRUCK | HINO 7.96L J08C | |
| HINO RANGER 6 FD1J | 1996 2002 | TRUCK | HINO 7.96L J08C | |
| HINO RANGER 6 FD2J | 1996 2002 | TRUCK | HINO 7.96L J08C | |
| HINO RANGER 7 GD1J | 1996 2002 | TRUCK | HINO 7.7L J08C | |
| HINO RANGER 8 FF1J | 1996 2002 | TRUCK | HINO 7.96L J08C | |
| HINO RANGER 8 GT1J | 1996 2002 | TRUCK | HINO 7.7L J08C | |
| HINO RANGER 9 FG1J | 1996 2002 | TRUCK | HINO 7.96L J08C | |
| HINO SERIE 700 | TRUCK | HINO J08C | ||
| HITACHI CX400 | CRANE TRACKED | CX SERIES | HINO H07CTD | |
| HITACHI CX500 | CRANE TRACKED | CX SERIES | HINO H07CT | |
| HITACHI CX500S | CRANE TRACKED | CX SERIES | HINO H07CT | |
| HITACHI CX550 | CRANE TRACKED | HINO H07CT | ||
| HITACHI CX650 | CRANE TRACKED | HINO H07CT | ||
| HITACHI CX700 | CRANE TRACKED | CX SERIES | HINO H07CT | |
| HITACHI EX200LC2 | EXCAVATOR TRACKED | HINO H07CT | ||
| HITACHI EX220 | EXCAVATOR TRACKED | HINO H07CT | ||
| HITACHI EX2201 | EXCAVATOR TRACKED | HINO H06CT | ||
| HITACHI EX25 | EXCAVATOR COMPACT | HINO H06CT | ||
| HITACHI EX270 | EXCAVATOR TRACKED | HINO H06CT | ||
| HITACHI EX280 | EXCAVATOR TRACKED | KUBOTA V1505E | ||
| HITACHI EX35 | EXCAVATOR COMPACT | KUBOTA V1505E | ||
| HITACHI KH1253 | CRANE TRACKED | HINO EM100 | ||
| HITACHI KH1253 | CRANE TRACKED | HINO H06CT | ||
| HITACHI KH1503 | CRANE TRACKED | HINO EM100 | ||
| HITACHI KH1503 | CRANE TRACKED | KH SERIES | HINO H06CT | |
| HITACHI KH1503 | CRANE TRACKED | DEUTZ BF10L513 | ||
| HITACHI KH1803 | CRANE TRACKED | HINO EM100 | ||
| HITACHI KH2303 | CRANE TRACKED | KH SERIES | HINO EM100 | |
| HITACHI KH3002 | CRANE TRACKED | ISUZU 8MA1 | ||
| HITACHI KH3003 | CRANE TRACKED | ISUZU 6RB1 | ||
| HITACHI SCX400 | CRANE TRACKED | ISUZU 6HK1 | ||
| HITACHI SCX550 | CRANE TRACKED | ISUZU 6HK1 | ||
| HITACHI SCX700 | CRANE TRACKED | ISUZU 6HK1 | ||
| HITACHI UH0103 | EXCAVATOR TRACKED | HINO EM100 | ||
| HITACHI UH0107 | EXCAVATOR TRACKED | HINO EM100 | ||
| HITACHI UH103 | EXCAVATOR TRACKED | HINO EM100 | ||
| HITACHI UH123 | EXCAVATOR TRACKED | HINO EM100 | ||
| HITACHI UH123 | EXCAVATOR TRACKED | ISUZU 6BG1T | ||
| ISUZU EVR | TRUCK | ISUZU 6BG1T | ||
| ISUZU FRR33 | TRUCK | ISUZU 6HH1 | ||
| ISUZU FSR | TRUCK | ISUZU 6.5L | ||
| ISUZU FSR33 | 04 1996 2000 | TRUCK | ISUZU 6HHI | |
| ISUZU FTR | TRUCK | ISUZU 6BD1T | ||
| ISUZU FTR33 | 04 1996 12 2002 | TRUCK | ISUZU 6HH1-S | |
| ISUZU FTR800 | TRUCK | ISUZU 6HH1-S | ||
| ISUZU FVR | TRUCK | ISUZU 6BG1T | ||
| ISUZU JCR500 | TRUCK | ISUZU 6BD1 | ||
| ISUZU LT | BUS | ISUZU 6.5L | ||
| ISUZU MR | BUS | ISUZU 6.5L | ||
| ISUZU NRR | 1993 | TRUCK | ISUZU 6.5L | |
| ISUZU NRR | TRUCK | ISUZU 6BG1 | ||
| ISUZU NRR | TRUCK | ISUZU 6BG1T | ||
| ISUZU SCR480S | 1985 | TRUCK | ISUZU 6BD1T | |
| ISUZU W5 | TRUCK | ISUZU 6BD1T | ||
| ISUZU W6 | TRUCK | ISUZU 6BD1T | ||
| ISUZU W7M | TRUCK | ISUZU 6BD1T | ||
| KAWASAKI KSS 80ZII | LOADER WHEELED | CUMMINS V504 | ||
| KUBOTA KH220 | EXCAVATOR COMPACT | KH SERIES | HINO H06CT | |
| KUBOTA KH270 | EXCAVATOR COMPACT | KH SERIES | HINO HO6CT1 | |
| LINK BELT LS2800B | EXCAVATOR TRACKED | ISUZU 6BD1T | ||
| LINK BELT LS2800C | EXCAVATOR TRACKED | ISUZU 6BD1T | ||
| LINK BELT LS2800CII | EXCAVATOR TRACKED | ISUZU 6BD1T | ||
| LINK BELT LS3400A | EXCAVATOR TRACKED | ISUZU 6BG1T | ||
| LINK BELT LS3400C | EXCAVATOR TRACKED | ISUZU 6BG1T | ||
| LINK BELT LS3400CII | EXCAVATOR TRACKED | ISUZU 6BG1T | ||
| NISSAN CMA86F | TRUCK | NISSAN FD6T | ||
| NISSAN CMA86K | TRUCK | NISSAN FD6T | ||
| NISSAN CPB | TRUCK | NISSAN FE6T | ||
| NISSAN CPC | TRUCK | NISSAN FE6T | ||
| TAYLOR THD 300 L | FORKLIFT | THD SERIES | CUMMINS 6BTA5.9 | |
| TAYLOR THDH 300 L | FORKLIFT | THDH SERIES | CUMMINS 6BTA5.9 | |
| TIMBERJACK 350 | SKIDDER | DETROIT DIESEL 353 | ||
| TIMBERJACK 350 | SKIDDER | DETROIT DIESEL 353 | ||
| TIMBERJACK 360 | SKIDDER | 300 SERIES | CUMMINS 6B5.9 | |
| TIMBERJACK 380 | SKIDDER | DETROIT DIESEL 6V 53 | ||
| TIMBERJACK 380C | SKIDDER | DETROIT DIESEL 6V 53 | ||
| TIMBERJACK 450 | SKIDDER | DETROIT DIESEL 6V 53 | ||
| TIMBERJACK 450 | SKIDDER | GMC V6 374 | ||
| TIMBERJACK 450 | SKIDDER | CUMMINS 6CT8.3 | ||
| TIMBERJACK C90 | LOGGER | CUMMINS 6CT8.3 | ||
| UD TRUCKS RANGER FL238 | TRUCK | NISSAN FE6TC |
