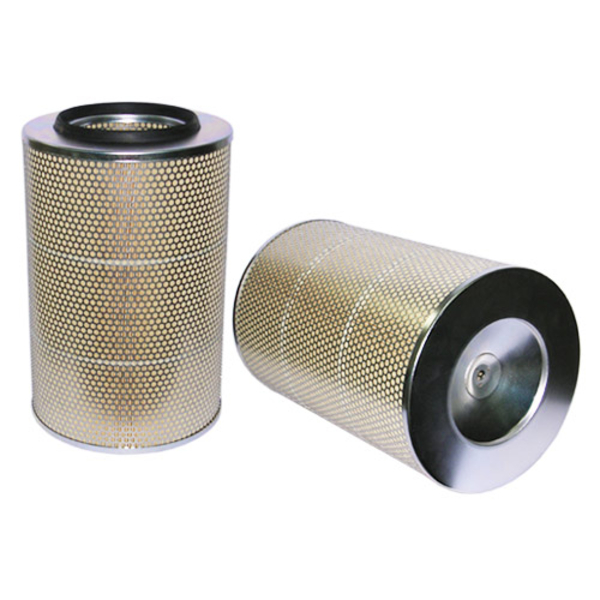

AIR FILTER SAFETY ROUND
HF186
AIR FILTER SAFETY ROUND
HF186
£75.62 exc VAT
In stock
In stock
Order By 2pm for UK Free Next Day Delivery
Orders under £250 Standard Delivery £25 +VAT
Orders over £250 Free Delivery
| Product Specification | |
| Outer Diameter | 303 mm (11.93 inch) |
| Inner Diameter | 256 mm (10.08 inch) |
| Inner Diameter Bottom Bolt Hole | 23 mm (0.91 inch) |
| Length | 561 mm (22.09 inch) |
| Overall Length | 573 mm (22.56 inch) |
| Efficiency Beta 1000 | 99.9% |
| Efficiency Test Standard | ISO IATF 16949 |
| Family | Extreme Protection |
| Type | OEM Quality Air Filter |
| Style | Safety Round |
| Media Type | Cellulose Pleated |
| Notes | Bottom End Closed |
| Notes | Metal End Caps |
| Notes | Metal Mesh Protection |
| Notes | Primary HF185 |
| Notes | |
| Primary Application | INGERSOLL RAND 52277399 |
OEM Cross Reference
| Manufacturer Name | Manufacturer Part No |
| AC DELCO | A902C |
| AMERICAN MOTORS CORP | 103653 |
| AMERICAN MOTORS CORP | SFA7781S |
| AMERICAN PARTS | 1149 |
| AMERICAN PARTS | 93239 |
| AP PARTS | AP3521A |
| ASAS | HF186 |
| ASAS FILTER | HF186 |
| ASTEC UNDERGROUND | 21000264 |
| ATLAS COPCO | 1610634002 |
| BALDWIN | PA2454 |
| BIG A | 1149 |
| BIG A | 93239 |
| BUCYRUS | 65320 |
| CANADIAN FILTER | CFM617 |
| CARQUEST | 87239 |
| CASE IH | 1050506 |
| CASE IH | E1010506 |
| CASE IH | E1050506 |
| CASE IH | E1050606 |
| CASE IH | E150506 |
| CASE IH | P1050506 |
| CATERPILLAR | 1W3636 |
| CATERPILLAR | 3I0105 |
| CHARDONNET | 7211778100 |
| CLARK | E4022650 |
| COMPACTION AMERICA | 5821349 |
| COMPAIR | 1036053 |
| COMPAIR | 9826250710002 |
| CONTINENTAL | PCA1570SY |
| COOPERS | AES2023 |
| COOPERS | AZA515 |
| CYCLONE | PMA117781 |
| DART | 401PPP117781 |
| DELUXE | 683 |
| DELUXE | 683AIR |
| DELUXE | AF683 |
| DEUTZ | 1319779 |
| DONALDSON | P117781 |
| DONALDSON | P136659 |
| DONALDSON | P142746 |
| DONALDSON | P150553 |
| DRESSER | VJ5176 |
| DRILTECH | 1036053 |
| DRILTECH | 103653 |
| DRILTECH | 1036 |
| ENMTP CPG | 5610968 |
| EUCLID | 4022650 |
| EUCLID | 9016647 |
| EUCLID | 9038349 |
| EUCLID | E4022650 |
| EXMAN | 103653 |
| EXMAN | SFA7781S |
| FAUN | 746714 |
| FG WILSON | 1000004398 |
| FG WILSON | 3488511 |
| FIL FILTER | HP4636 |
| FILTER MEX | FMA1570S |
| FLEETGUARD | AF880 |
| FRAM | CA1570SY |
| GENERAL MOTORS | 9038349 |
| GIF | GA720 |
| GONHER | GA570E |
| GONHER | GA570M |
| GUARDIAN | G117781 |
| GUASCOR | 7650215 |
| GUASCOR | 7650282 |
| HAVAM | HD6860 |
| HEAVY DUTY AIR | HDA6659 |
| HEAVY DUTY AIR | HDA7781 |
| HIFI | SA10830 |
| HITACHI | FTP117781 |
| INDUCONTROL | AR1570SY |
| INGERSOLL RAND | 35356146 |
| INGERSOLL RAND | 52277391 |
| INGERSOLL RAND | 52277399 |
| JOHN DEERE | AZ104111 |
| JOY | LT4215145 |
| KENWORTH | 3040615 |
| KENWORTH | 3040616 |
| KENWORTH | 3040644 |
| KENWORTH | 3040648 |
| KENWORTH | 3040653 |
| KENWORTH | 3040654 |
| KENWORTH | 401PPP117781 |
| KNECHT | AG156 |
| KOMATSU | 5810112130 |
| KOMATSU | 5810212130 |
| KOMATSU | 581021213O |
| KOMATSU | VJ5176 |
| KOMDRESCO SA | 5810212130 |
| KRALINATOR | LA617 |
| LETOURNEAU | 4215145 |
| LETOURNEAU | 4241604 |
| LETOURNEAU | 7001330 |
| LETOURNEAU | PB1400 |
| LETOURNEAU | PB1569 |
| LETOURNEAU | PB2101 |
| LETOURNEAU | VA0010 |
| LETOURNEAU | VJ5176 |
| LIEBHERR | 1301100 |
| LIEBHERR | 553090414 |
| LIEBHERR | 5610968 |
| LINDENBERG ANLAGEN | MDONP117781 |
| LOCKHEED | AP3521 |
| LOCKHEED | AP3521A |
| LOCKHEED | LK3521 |
| LOESING | 20896 |
| LUBER FINER | LAF1816 |
| LUBER FINER | LAF7781 |
| MANN HUMMEL | CF30001 |
| MANN HUMMEL | C30668 |
| MCCORMICK | P1050506 |
| MCNEILUS | 3765711 |
| MOTORCRAFT | FA805 |
| MTU | XP52712100003 |
| NAPA | 2239 |
| NELSON | 117781 |
| NELSON | 70121N |
| NELSON WINSLOW | 117781 |
| NUTECH | SS022 |
| ONAN | A029K622 |
| ORENSTEIN KOPPEL | 101081 |
| ORENSTEIN KOPPEL | 1499256 |
| OSHKOSH | 3765711 |
| PACCAR | 3040615 |
| PACCAR | 3040616 |
| PACCAR | 3040644 |
| PACCAR | 3040648 |
| PACCAR | 3040653 |
| PACCAR | 3040654 |
| PALLMAN | PFA11778 |
| PALLMAN FILTER | PFA11778 |
| PARKER HANNIFIN | PA2454 |
| PAWLING HARNISCHFEGER | 1046Z769 |
| PERKINS | CH11401 |
| POCLAIN | 1050506 |
| POCLAIN | E1050506 |
| POSTAS | HF1409 |
| PUROLATOR | A72921 |
| PUROLATOR | AF2921 |
| REFILCO | AF2239 |
| REYTOR | IT117781 |
| RUSTON BUCYRUS | 46140255 |
| RYCO | HDA5395 |
| SAKURA | A9205 |
| SANDVIK | 1036053 |
| SDMO | 330570137 |
| SF FILTER | SL81001 |
| SOFIMA | S7314A |
| SURE FILTER | SFA7781S |
| TAMROCK | 1036053 |
| TEREX | 9038349 |
| TEREX | 101081 |
| TEREX | 1499256 |
| TEREX | E1010506 |
| TEREX | E1050606 |
| TESMEC | V004505100 |
| UNIT RIG EQUIPMENT | 1000445 |
| UNIT RIG EQUIPMENT | 901620 |
| UNITED CENTRAL INDUSTRIAL | 686604 |
| VMC | AF117781 |
| VME | 4022650 |
| VME | 4034055 |
| WABCO | 7001330 |
| WABCO | VA0010 |
| WABCO | VJ5176 |
| WALGAHN MOTORENTECHN | 810627 |
| WIRTGEN | 95384 |
| WIX | 42239 |
| WOODGATE | WGA406S |
Machinery & Equipment
| Equipment | Year | Equipment Type | Equipment Options | Engine |
| CASE IH 1000CA | EXCAVATOR | DEUTZ BF12L413F | ||
| CASE IH 300CK | EXCAVATOR | DEUTZ F12L413 | ||
| CASE IH 300CL | EXCAVATOR TRACKED | DEUTZ F12L413 | ||
| CASE IH 350CK | EXCAVATOR | DEUTZ F12L413 | ||
| CASE IH B SERIES | EXCAVATOR | DEUTZ F12L413 | ||
| CATERPILLAR 3524B | ENGINE | DETROIT DIESEL 12V149 | ||
| EUCLID R100 | HAUL TRUCK | DETROIT DIESEL 12V149 | ||
| EUCLID R100 | HAUL TRUCK | DETROIT DIESEL 16V149 | ||
| KOMATSU 830E | HAUL TRUCK | DETROIT DIESEL 16V149 | ||
| KOMATSU HD1200M1 | HAUL TRUCK | CUMMINS KTA2300 | ||
| KOMATSU HD1600M1 | DUMP TRUCK | CUMMINS KTA3067 | ||
| LIEBHERR R984B | EXCAVATOR TRACKED | R SERIES | CUMMINS KTTA19 | |
| LIEBHERR R984C | EXCAVATOR TRACKED | R SERIES | CUMMINS QSK19 | |
| POCLAIN 1000 | CONSTRUCTION | EQUIPMENT | DEUTZ BF12L413 | |
| POCLAIN 1000EC | CONSTRUCTION | EQUIPMENT | DEUTZ BF12L413 | |
| POCLAIN 300 | CONSTRUCTION | EQUIPMENT | DEUTZ BF12L413 | |
| POCLAIN 610 | CONSTRUCTION | EQUIPMENT | DEUTZ BF12L413 | |
| TEREX 33 09 | HAUL TRUCK | DETROIT DIESEL 16V71 | ||
| TEREX 33 09AA | HAUL TRUCK | CATERPILLAR C27 ATAAC | ||
| WIRTGEN W 2200 | 2010 | MILLING EQUIPMENT | W SERIES | CATERPILLAR C27 ATAAC |
| WIRTGEN WR 2400 | 2005 | ROAD STABILIZER | WR SERIES | MERCEDES OM502LA AG3 |
| ZETTELMEYER 1000 | CONSTRUCTION EQUIPMENT | ZETTELMEYER 1000 |
